Level 1
Agency production resource
UHD Mobile Production Unit
Daily, weekly, and monthly project support.
Give your agency or production team a television-ready control room at the venue. Multi-camera switching, graphics, replay, broadcast audio, captioning, recording, and redundant transport arrive together in one staffed mobile unit.
8-Camera
Fiber Production and or 12G
6 seats
Broadcast crew positions
12G
HD-SDI signal path
25 kW
Onboard PTO generator
A production room on wheels
Built for agency-led live production.
Bring the brief, client requirements, and distribution plan. The truck gives your production a dedicated technical center for directing cameras, mixing audio, running graphics and replay, recording feeds, and sending the program to viewers or a network.
- One technical center for picture, sound, graphics, replay, recording, captioning, and transport.
- A six-position production room for direction, technical direction, graphics, shading/replay, engineering, and dedicated audio operation.
- Contribution paths for OTT, social, PPV, television, or a clean feed back to the network.
- Daily, weekly, or monthly project planning without publishing a one-size-fits-all equipment package.
Scalable production support
Choose the production level that fits the brief.
Start with the truck itself, add specialized engineering and graphics support, or engage a complete mobile production team.
Discuss your production levelLevel 2
Truck + Engineer
Level 3
Truck + Engineering + Graphics
Level 4
Complete Mobile Production
Director
Technical Director
Graphics
Replay
A1
Utilities
Engineering
Streaming
Recording
Base Truck Rental
Permanent onboard infrastructure is included.
Base Truck Rental includes everything permanently installed in the mobile unit. Additional hardware is priced separately for the specific job.
Project-specific hardware
- Super slow-motion cameras
- POV cameras
- Robotic PTZ cameras
- Wireless handheld cameras
- RF systems
- Jib/crane cameras
- Steadicam
- Drone services (where permitted)
All cameras, tripods, CCUs, and cabling are priced per specification.
Current truck specification
The equipment behind the production.
Scope the truck as a complete mobile facility, then match cameras, crew, connectivity, and delivery requirements to the project.
Vision mixer
- Ross UHD -12 input, 5 Aux, 2 ME
- Ross 3G- 18 input, 8 Aux
Graphics
- Ross Xpression
- Captivate Broadcast
Recorders
- (4) Blackmagic Design Hyperdeck Studio 4K
- (4) Datavideo HDR-90
- Datavideo NVS-40D
- Datavideo NVS-35
Closed captioning
- Link Electronics
Camera controllers
- Skaarhoj
- Datavideo
Video monitors
- (6) Blackmagic Design UHD Smartview
- (4) Feelworld D101 Plus Dual 10.1"
- (6) Sony 32" Professional
Encoders
- LiveU
- Datavideo
Replay
- NewTek 3Play
Cameras
- JVC ENG
- Datavideo PTZ
Connectivity
- Fiber
- IP2110
- Dante
- 12G HD-SDI
- SMPTE
- Starlink Satellite
- 4G / 5G multi-carrier connections
Audio studio
- Tascam Sonicview 24 (44 channels)
- Dante
- Turtle AV Dante
- Waves Super Rack
- De-Feedback AI
- Genelec monitors
Production comfort
- Television studio — seating for 6
- Graphics operator, Director / Producer
- Technical director, Shader
- Engineer, Audio engineer
Power
- Shore: Camlock 200 Amp
- Onboard: 25 kW PTO generator
- Redundant battery backup

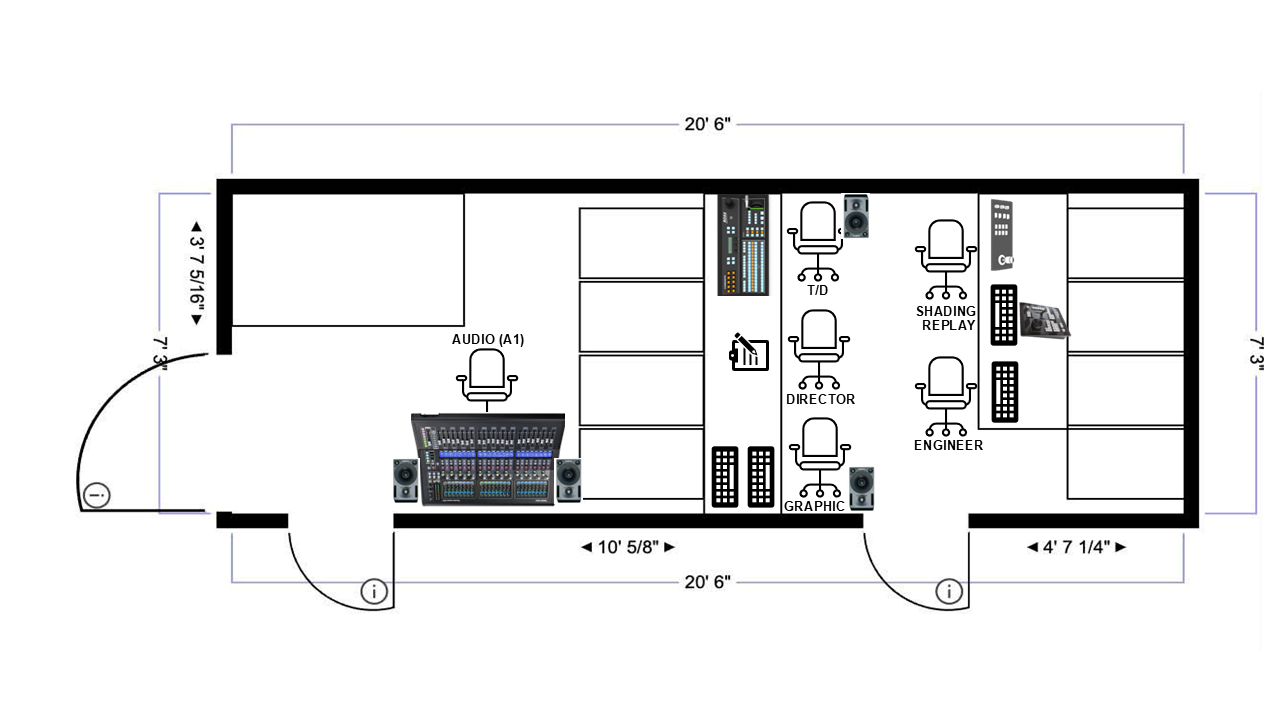

Supplied truck layout
Separate Audio / Video Control Rooms.
The layout separates audio from the main production area and shows dedicated positions for direction, technical direction, graphics, shading/replay, engineering, and audio.
Rental periods
Match the truck to the length of the project.
Daily, weekly, and monthly availability is quoted around the production schedule, travel, crew, equipment package, venue, and signal requirements.
Daily
For a single show day, special event, sports production, remote, or network contribution that needs a complete control room onsite.
Weekly
For multi-day programs, conferences, tournaments, touring stops, or consecutive production days with one technical home base.
Monthly
For extended projects, recurring productions, temporary studio needs, or a longer campaign that benefits from a dedicated mobile facility.
Service coverage
Travel & Mobilization
Our broadcast truck is based in Palm Beach County, Florida, and serves clients throughout Florida and the Southeastern United States. Local service within our primary coverage area is included. Mobilization fees for destinations outside our local service area are quoted based on event location, duration, and logistical requirements.
Zone 1
No Mobilization Fee (Included)
- Palm Beach County
- Broward County
- Martin County
- St. Lucie County
- Indian River County
- Northern Miami-Dade
UHD mobile production unit inquiry
Tell us what the project needs.
No rate is assumed. The quote is built around your dates, location, crew, equipment, and signal path.
